Overview

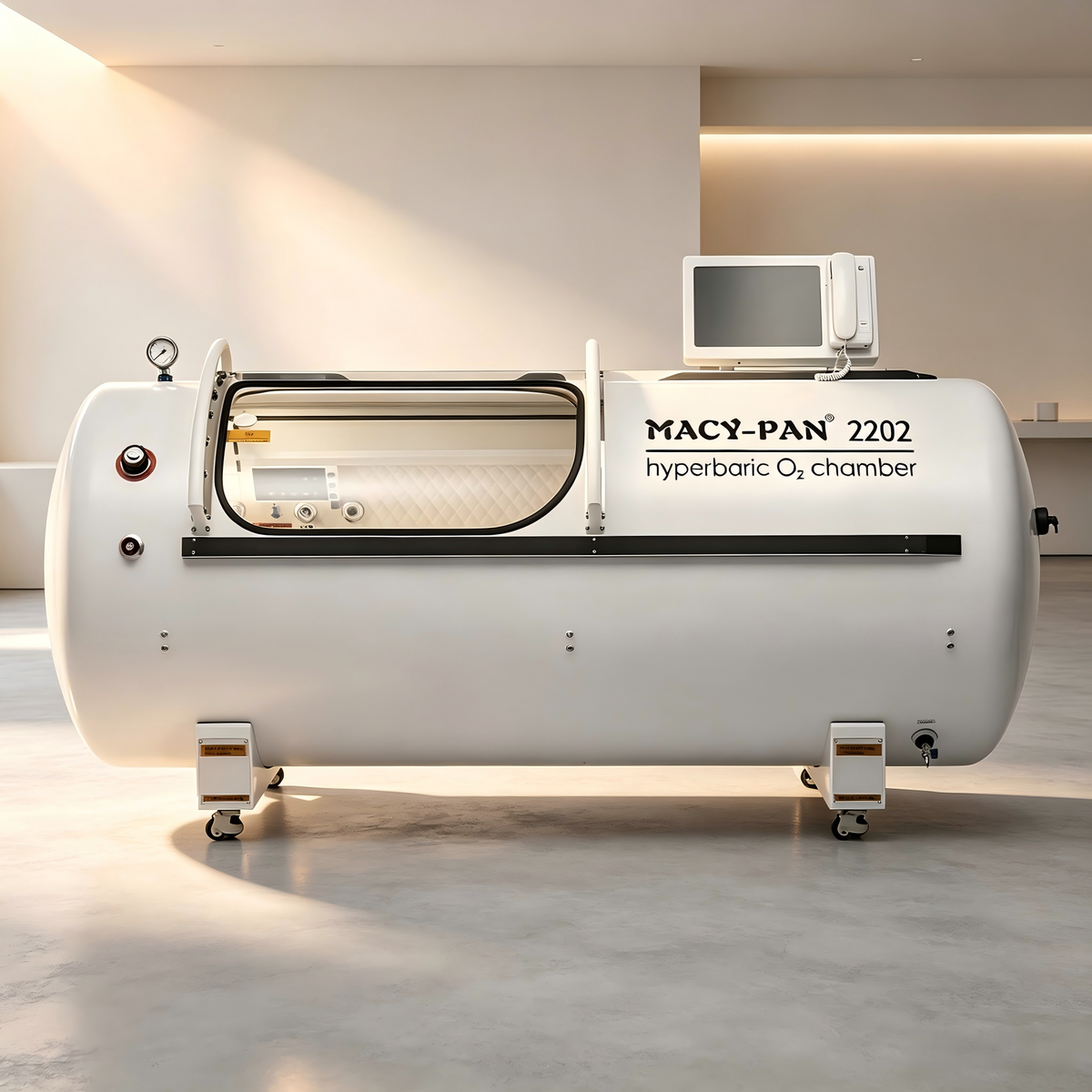

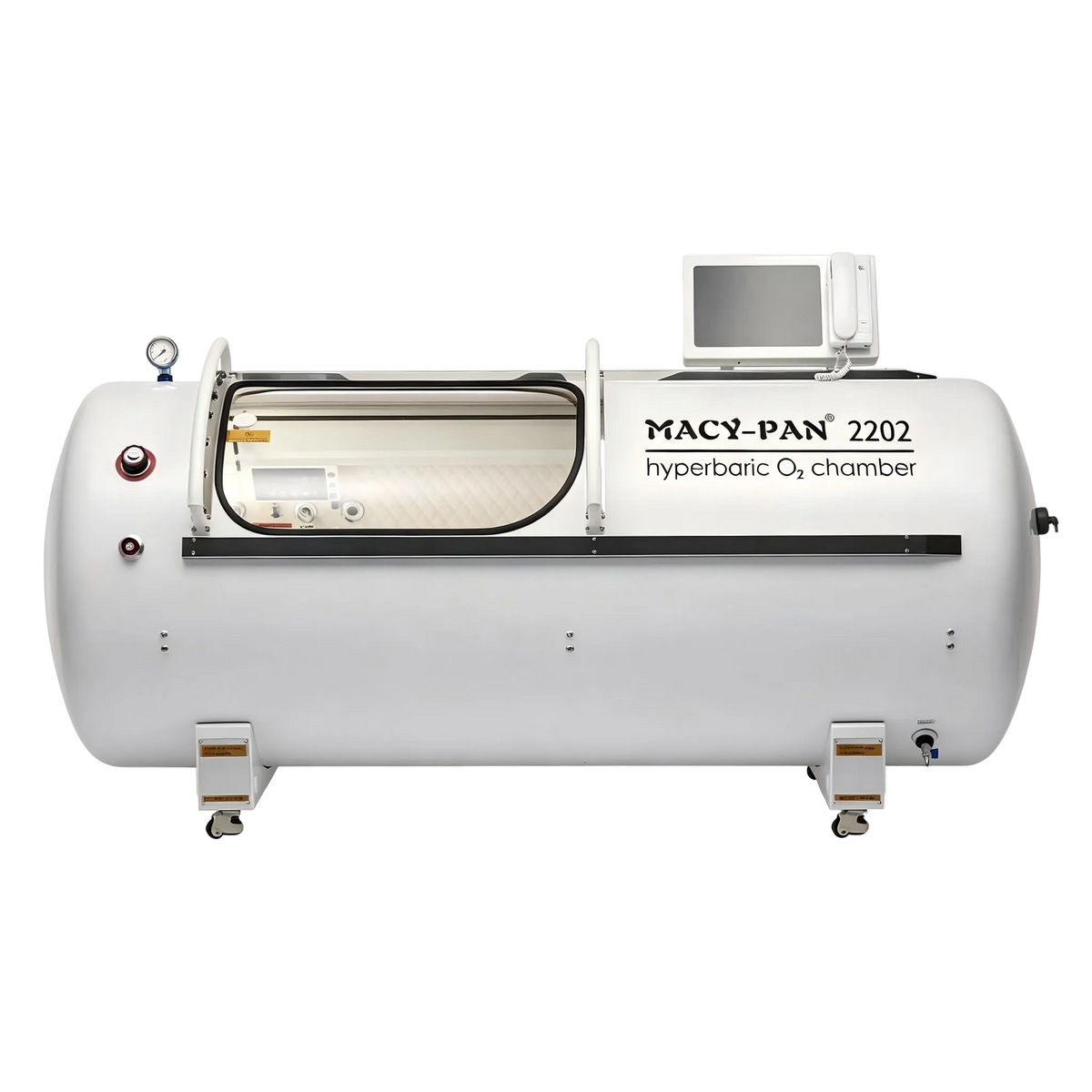

MacyPan HP2202-85 2.0 ATA Hard-Shell Hyperbaric Chamber

Advanced Pressure, Premium Construction, and Designed for a Higher-End Hyperbaric Experience

The MacyPan HP2202-85 is a premium single-person hard-shell hyperbaric chamber designed for users seeking a more substantial and advanced chamber platform. Operating at up to 2.0 ATA, the HP2202-85 combines a durable 304 stainless-steel cabin, large transparent polycarbonate door, internal and external touchscreen controls, and an integrated pressure-management system.

Measuring 87" × 34", the chamber provides a dedicated lying-style environment while its large transparent door helps create a more open, comfortable interior. The one-piece stainless-steel structure is designed for durability, while integrated wheels allow the chamber to be repositioned when needed.

HP2202-85 Features

Performance & Comfort

• Operating Pressure: Up to 2.0 ATA
• Hard-Shell Construction: One-piece 304 stainless-steel chamber structure
• Chamber Dimensions: 87" × 34"
• Single-Person Capacity: Designed for one user in a lying position

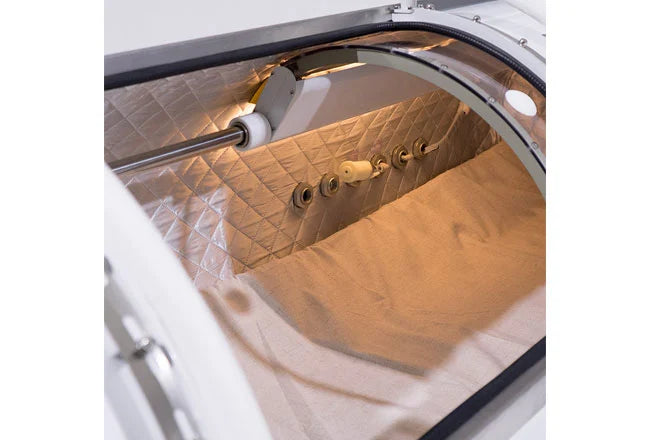

• Transparent Polycarbonate Door: Large clear door provides increased visibility and a more open interior feel
• Noise Level: ≤62 dB

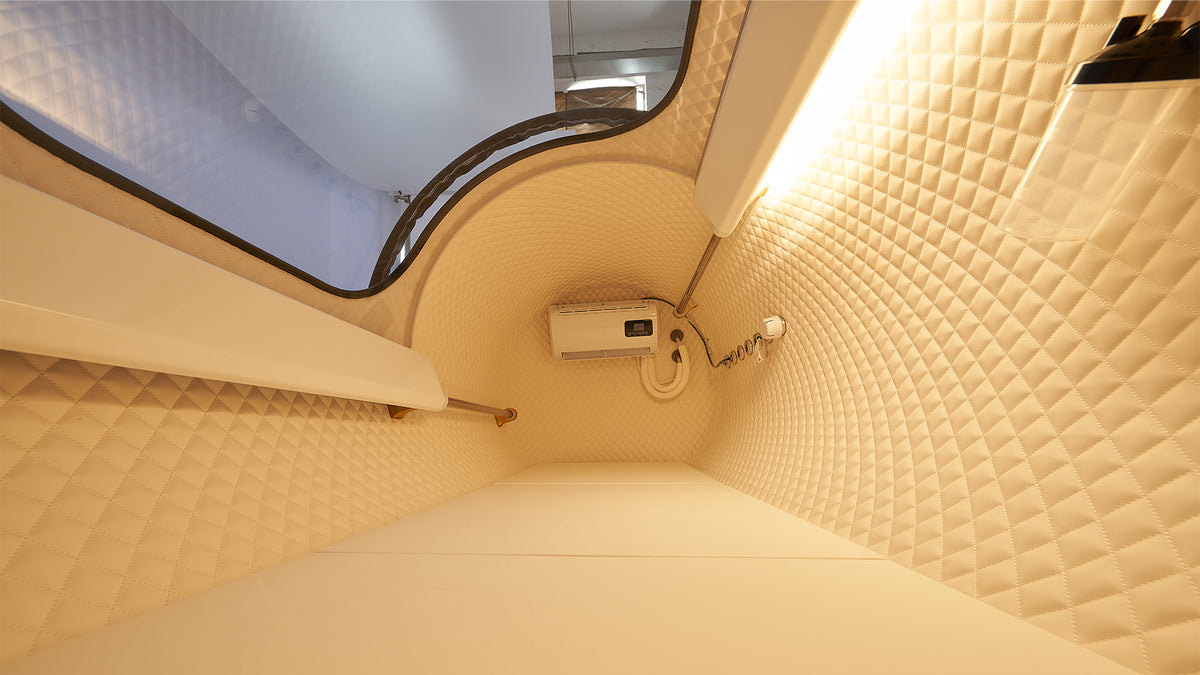

• LED Reading Light: Eye-protective interior lighting for added comfort during sessions
• Integrated Wheels: Allows the chamber to be moved and repositioned more easily

Control & Cooling System

• Internal & External Touchscreen Controls: Allows operation from both inside and outside the chamber
• Independent Controls: Start and end functions can be controlled internally or externally
• Automatic Timer: Adjustable 0–120 minute timing system
• In-Out Communication System: Integrated telephone and speaker system for communication between the user and someone outside the chamber

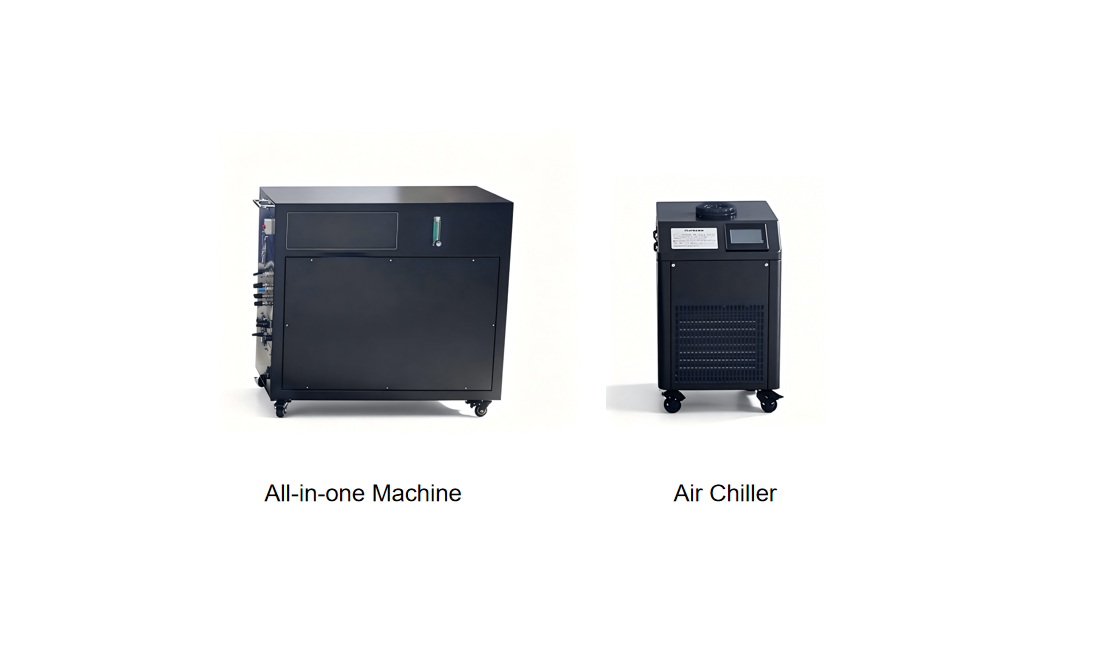

• All-in-One Machine: BOYT2202-10L system
• All-in-One Machine Power: 1600W
• Voltage Compatibility: 110V / 220V / 240V
• Dedicated Air Chiller: HX-020 cooling system
• Air Chiller Power: 900W
• Air Chiller Voltage: 110V / 220V / 240V

Safety & Chamber Design

• Dual Pressure Gauges: Internal mechanical pressure display plus digital pressure monitoring
• Automatic Pressure Relief Valve: Automatically helps maintain constant chamber pressure
• Emergency Relief Valve: Designed to quickly release pressure in an emergency
• Internal & External Controls: Provides control access from either side of the chamber
• One-Piece Stainless-Steel Structure: Designed for maximum structural durability
• Large Transparent Door: Improves visibility into and out of the chamber
• Polycarbonate Door Construction: Durable transparent chamber entry system
